Papa new upgraded full 304 stainless steel protein dates bar machine for hard bar making
Description:

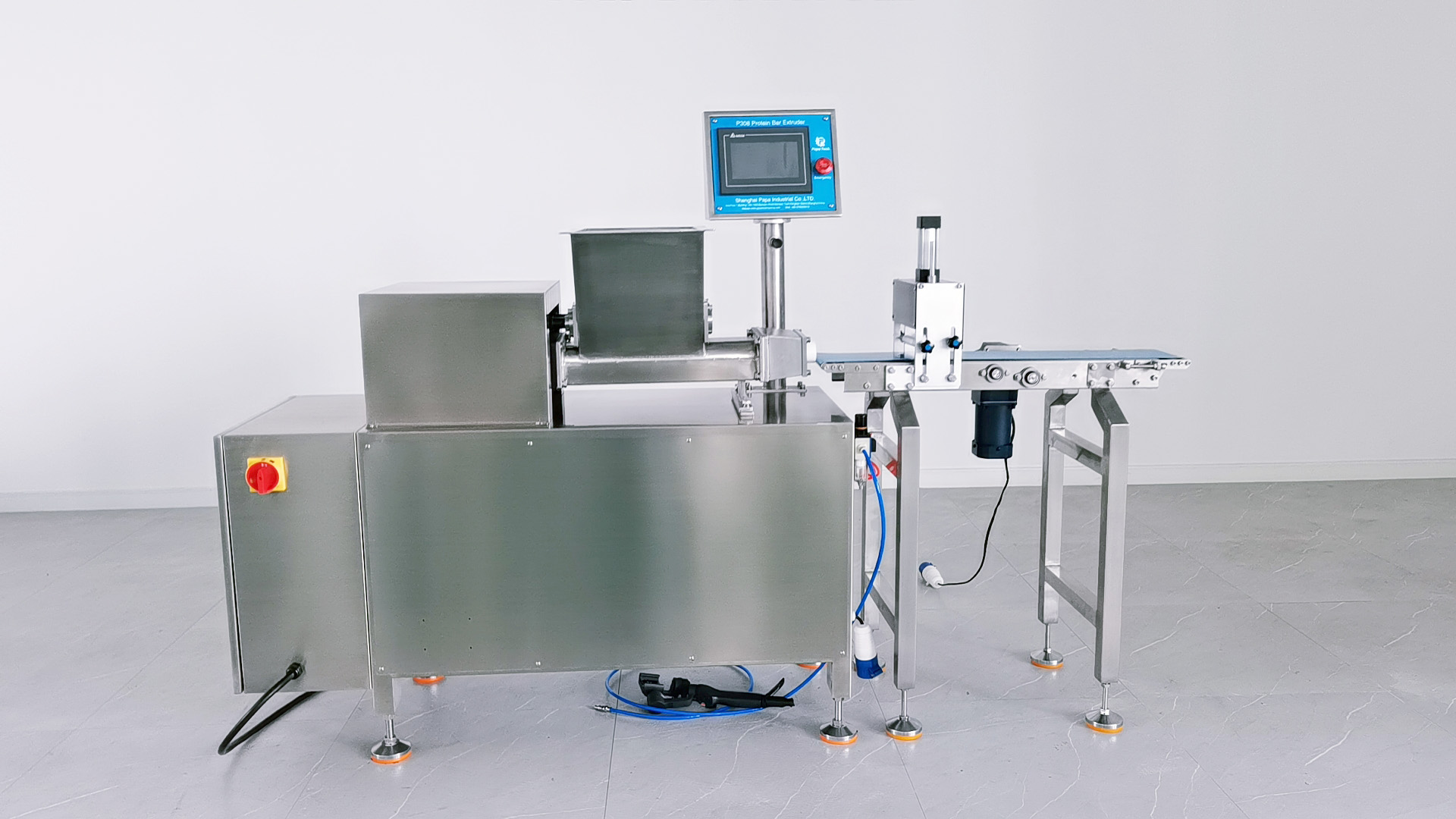

Papa P308 model energy dates bar making machine is mainly designedfor hard and dry materials bars,the motor that we use is 380V,three phase motor,which can produce very strong torque.All the metal parts,including the exrusion screw adopt to the full 304 stainless steel,which can handle the very hard and dry ingredients.Actually the strong P308 energy bar extruder machine that we produce has fixed the problem that the hard mixture or dough can't be extrudering out,customers can use this machine to make almost all the various bars and cookies like protein bar, date bar, energy bar, fruit bar, chocolate bar, vegan bar, nutrition bar, praline bar, crackers, fish crackers, halava, allergie free bar and other food bars no matter the mixture or dough is hard or soft.
The automatic P308 extruding machine can change different skin thickness, length, size of bars. It can also change different molds for making different size bar products.
The P308 enery bar machine can be used alone or combined with other food machines: It can combine cooling tunnel for products which need cooling; It can combine chocolate enrober for chocolate coated products; It can combine packing machine for auto bag wrapping: It can combine oven for baking; It can be used in other food production line, etc.
Specifications:
| Model | P308 |
| Capacity | 60-80pcs/min |
| Product shape | bar, round, strip, square, pyramid, bites, etc. |
| Product weight | 10-250g |
| Voltage | 380V, three phase |
| Power | 4.0kw |
| Dimension | 2550*760*1400mm |
| Weight | 400KG
|
Protein bar extruder features:
* Machine body & Hopper made by 304 Stainless steel.
* Custom designed nozzle make different size bars.
* Available to make multiple rows at one time, not only suitable for small capacity business usage, but also in big capacity business.
* Extruder and cutter separately design makes the machine easy for cleaning and .
* Machine completely packed and sent before shipment, no need installation, just connect electricity.
* Automatic control, just changing numbers on screen.
Automatic cutter with conveyor(PLC control) features:
* Carbon steel cutting blade with teflon coated, suitable for cutting various bars.
* Pressing roller in front of the cutting blade help to stable the bar and anti-sticking.
* Safety guard around cutter see through inside, easy to remove and clean.
* Speed easy to control by changing numbers in the touch screen panel.
* Safety cover along the conveyor belt makes sure safety in production.
* Conveyor speed adjustable according to bar size.
Application : protein bar,cookie bar,fruit bar,date bar,date bites,energy bar,coconut bar,chocolate bar ,Nutrition bar
Bar produced by P308 Protein bar extruder:
Application:
P308 Horizontal protein energy bar extruder video:
Hard protein energy bar extruder cutting machine video:
Related Product:
P160 Automatic encrusting machine
P160 Automatic encrusting machine is our multifunctional equipment to make center filled products, such as cookies, mooncakes, stuffed pies, filled balls, filled date bars, and so on. The encrusting machine can make round, ball, cone, bar, strip shapes, etc. So the encrusting machine can also make bar products, It can not make hard dough, but it is enough for normal products making.
Optional devices:
1. Chocolate enrober
Chocolate enrober is used for coat chocolate around food or on bottom of food, the commercial chocolate enrober machine is small sized and easy operation. Customer can choose to connect air fan cooling or tunnel cooling after the chocolate enrober machine. The chocolate enrober has different capacities for customer to choose.
2. Planetary mixer
The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.
3. Flow wrapping machine
Automatic flow packing machine is used for food packing, featuring by steady working and excellent quality. It can pack variety of different materials and be very multifunctional to pack different kinds of food, such as bars, cookies, biscuits, cakes, breads, etc.
